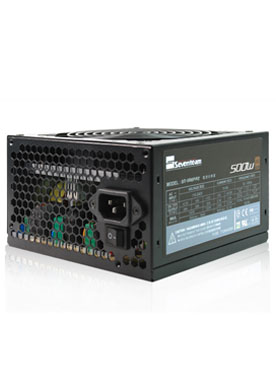

Seventeam ST-500PAT


  • Meets ATX 12V V2.3 standard
  • Active PFC ( power factor correction) > 0.99
  • High Standard compatibility :
    - Support High performance SLI & Cross-Fire VGA Card
    - Support High performance SLI & Cross-Fire VGA Card
    - Support Multi-Core CPU
  • Single +12V rails, provide powerful output Voltage
  • High Efficiency >82%
  • 120mm ultra silent fan (fan acoustics: <20dBA) delivers efficient air flow
  • Iinear-shaped heat sink made from highly conductive metal:
    low turbulent flow delivers better heat dissipation.
  • LLC resonant circuit design for high efficiency and performance
  • PSU Protection Functions:OPP, UVP, SCP, OVP, OTP

Product Information



Model No.

ST-500PAT

Output Wattage

500W

PFC

Active PFC

Efficiency

> 82 % FULL LOADING

Hold-up Time

16MS AT 25

Weight

 KG

Color

Black

Fan

Single 120 mm DC Fan

Dimension

150 (W) X 140 (D) X 86 (H) MM

Protection

OVPUVPOPPSCP



INPUT

Input Voltage

100-240 VAC

Input Frequency

50 ~ 60 Hz

MTBF

100,000 hrs minimum (at 25 )

Input Current

8A-5A (RMS)



OUTPUT

Voltage

+5V

+12V

-12V

+3.3V

+5Vsb

MIN

1

1

0.0

1

0

NOM

-

-

-

-

MAX

20

36

0.3

20

2.5

1.MAXIMUM CONTINUOUS COMBINED LOAD ON +5V AND +3.3V OUTPUTS SHALL NOT EXCEED 120W.
2.MAXIMUM CONTINUOUS COMBINED LOAD ON +5V,+3.3V,+12V OUTPUTS SHALL NOT EXCEED 400W.

Environment

Operation Temperature

 to 40
