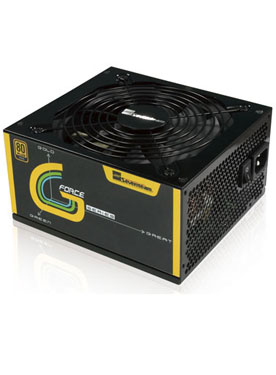

Seventeam ST-800PGD
- Conforms to ATX 12V V2.3 specification
- Full range voltage: 90-264Vac
- Active PFC (Power Factor Correction) > 0.99
- High Standard compatibility:
- Support SLI and Crossfire VGA card
- Support Multi-Core CPU - Single +12V rail provides powerful output Voltage
- High Efficiency >90%
- 120 mm ultra silent fan delivers efficient air flow
- Comb-shaped heat sink made from highly conductive metal: low drag delivers better heat dissipation
- DC-DC and SR (Synchronous Rectifying) circuit construction
- All Japanese-made Capacitors and Solid Capacitors for maximum reliability and stability
- PSU Protection Functions：OCP、OVP、UVP、OPP、SCP
*The cooling fan will begin operation when the inside temperature of PSU is higher than 45℃.
Product Information
Model No |
ST-800PGD |
Output Wattage |
800W |
PFC |
Active PFC |
Efficiency |
> 90 % |
P. G. signal |
100-500 ms |
Hold-up Time |
14ms at 25℃ |
Weight |
2.2 KG |
Color |
Black |
Fan |
Single 120 mm DC Fan |
Dimension |
170mm (L) x 150mm(W) x 86mm(H) |
Protection |
OCP、OVP、UVP、OPP、Short Circuit Protection |
INPUT |
|
Input Voltage |
90-264 VAC |
Input Frequency |
50 ~ 60 Hz |
MTBF |
100,000 hrs minimum (at 25 ℃) |
Input Current |
12-6A |
OUTPUT |
||||||
Voltage |
+5V |
+12V |
+3.3V |
-12V |
+5Vsb |
|
MIN |
0.5 |
1 |
0.5 |
0 |
0.1 |
|
NOM |
12.5 |
32.5 |
12.5 |
0.25 |
1.75 |
|
MAX |
25 |
65 |
25 |
0.5 |
3.5 |
|
Units |
AMPS |
AMPS |
AMPS |
AMPS |
AMPS |
|
Note：
1) The maximum continuous total DC output power shall not exceed 800 Watts.
2) The maximum continuous combined load on +5V and +3.3V outputs shall not exceed 140 Watts
3) The maximum continuous combined load on +5V, +3.3V and +12V outputs shall not exceed 790 Watts.
Environment |
|
Operation Temperature |
5 ℃ to 50℃ |
Storage Temperature |
-40 ℃ to 70℃ |
Operation Humidity |
20% to 85%, non-condensing |
Storage Humidity |
10% to 95%, non-condensing |
