SilverStone AR05
- Designed for low profile system at only 37mm tall
- Two Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
- Heat-pipe direct contact (HDC) technology
- Includes compact 92mm PWM fan for excellent cooling and low noise
- For use with CPUs up to 65W or more*
- Intel Socket LGA1155/1156/1150 and AMD Socket AM2/AM3/FM1/FM2 compatible
Product Information
| Model No. | SST-AR05 |
| Material | Copper heat pipes with aluminum fins |
| Application | Intel Socket LGA1155/1156/1150 AMD Socket AM2/AM3/FM1/FM2 |
| Heat Pipe Type | Ø6mm heat-pipe x 2 |
| Cooling System | 92mm x 92mm x 15mm fan |
| Dimension w/fan | 104mm (W) x 92mm (D) x 36.7mm (H) (with fan) |
| Noise | 20 ~ 28.3dBA |
| Bearing | Rifle Bearing |
| Net Weight | 138g (without fan) |
| Voltage Rating (V) | 12V |
| Start Voltage (V) | 7V |
| Air Flow (CFM) | 40.2CFM (Max.) |
| Speed (R.P.M.) | 1200 ~ 2500RPM PWM |
| Life Expectance (hrs) | 40,000 hours |
| Remark |
| *To use on CPUs with TDP greater than 65W, a case with efficient airflow is required. |

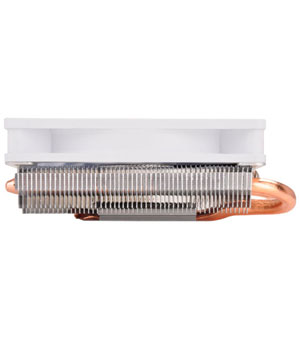

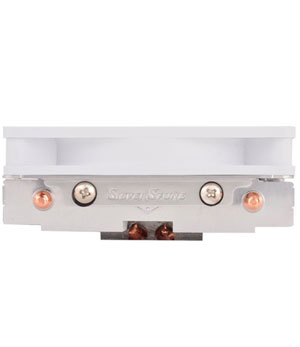

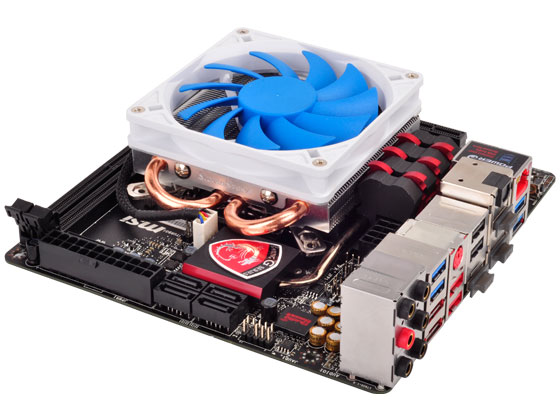

Designed for low profile systems at only 37mm tall

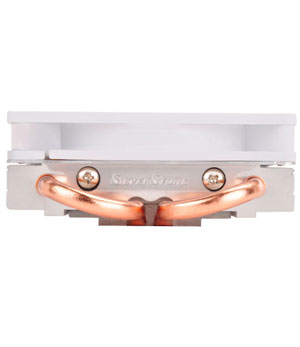

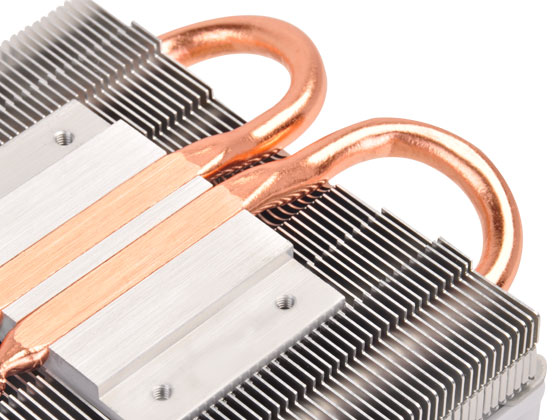

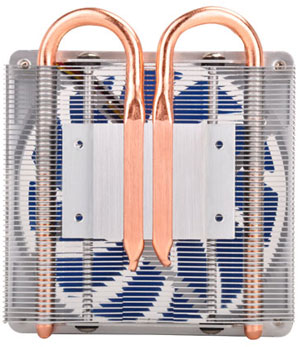

Two Ø6mm heat-pipes

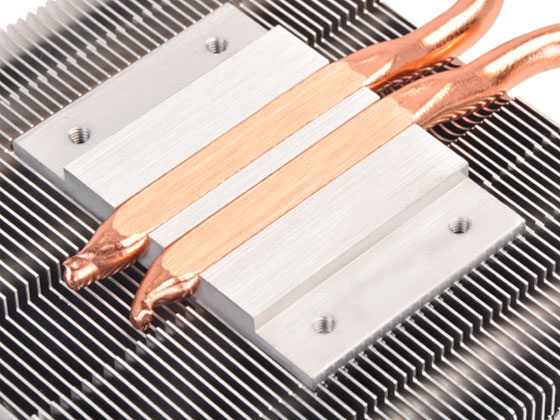

Heat-pipe direct contact (HDC) technology

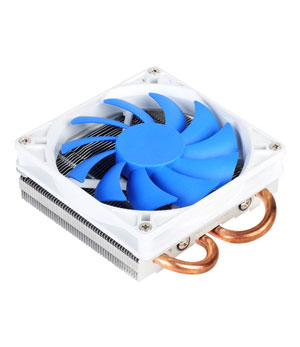

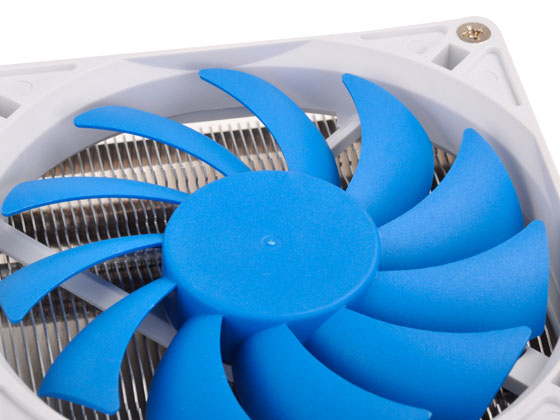

Includes compact 92mm PWM fan

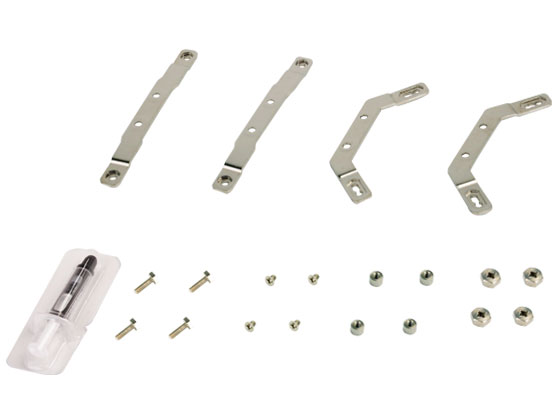

Components included

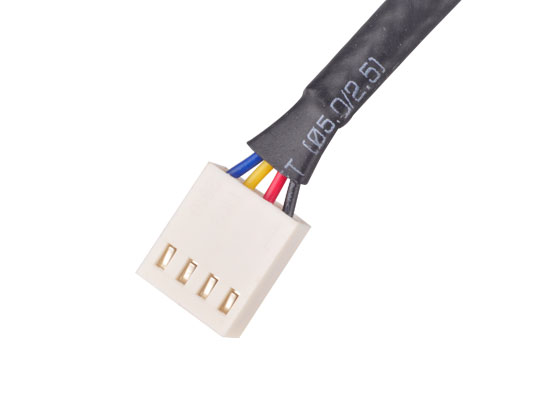

PWM fan connector
