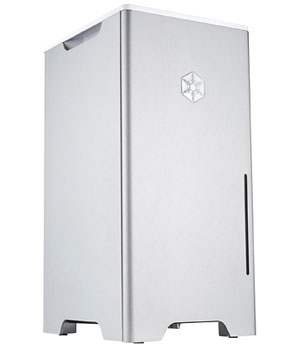

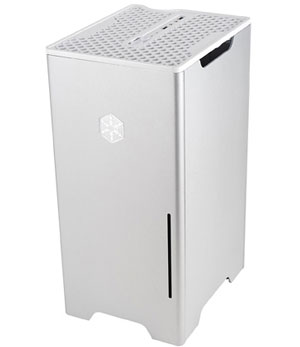

SilverStone FT03S-MINI


  • Super mini footprint design with no cables and vents on four sides
  • Ample space for CPU cooling (78mm in height)

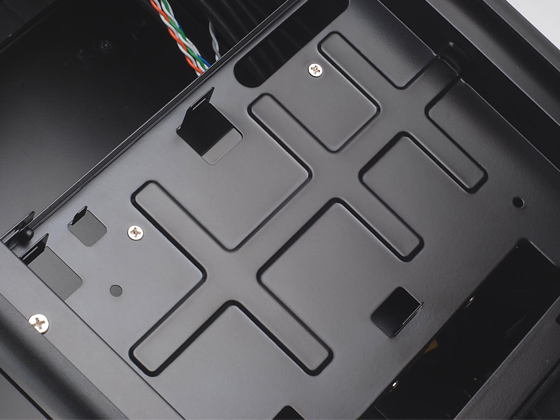

  • Elevated standoff for motherboard back side components
  • Includes 140mm Air Penetrator fan and support entry level liquid cooling
  • Supports for two 2.5” SSD/hard drives and one 3.5” hard drive
  • Mini-DTX / Mini-ITX motherboard & SFX PSU compatible
  • Standard-length expansion cards support (10 inches)




Product Information

Model No. SST-FT03S-MINI (silver)
--
--
--
Material Aluminum outer shell, steel body
Motherboard Mini-DTX, Mini-ITX
Multimedia --
Drive Bay External 12.7mm Slot loading slim optical drive x 1
--
Internal 3.5” x 1 , 2.5”x2
Cooling System Front --
Rear --
Side --
Top --
Bottom 1 x 140mm Air Penetrator fan, 1500rpm
Internal --
Expansion Slot 2
Front I/O Port USB 3.0 x 2
Audio x 1
MIC x 1
Power Supply 1 x Optional standard SFX
Operating system support --
Expansion Card Compatible up to 10” long, width restriction-5.11"
Limitation of CPU cooler 82mm
Limitation of PSU SFX PSU
Net Weight 4.7kg

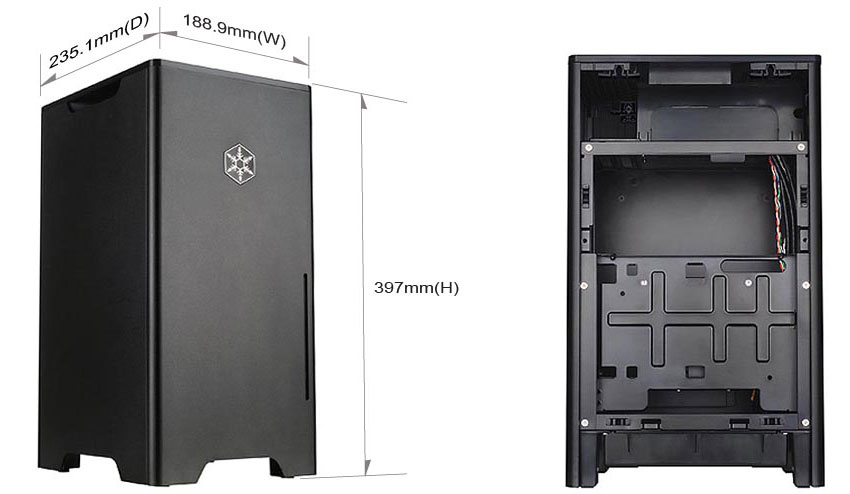

Dimension 188.9mm(W)x 397mm(H)x235.1mm(D), 17.6 liters
Extra --
Support VESA Mount --

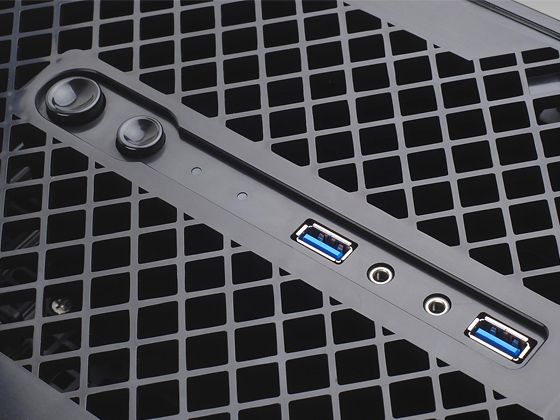

Power/reset button, USB 3.0 and I/O port

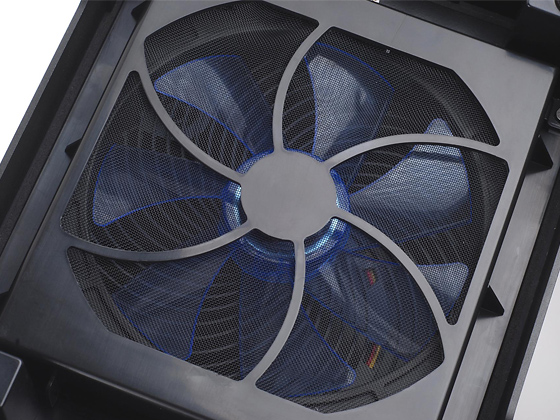

Bottom 140mm air penetrator fan

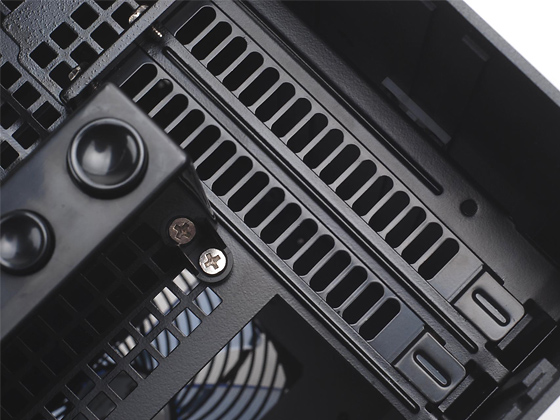

Dual expansion slots
Removable hard drive bracket
