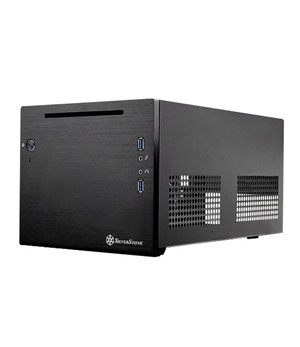

SilverStone SG08-LITE


  • Super mini footprint design with no cables and vents on four sides
  • Ample space for CPU cooling (78mm in height)
  • Elevated standoff for motherboard back side components
  • Includes 140mm Air Penetrator fan and support entry level liquid cooling
  • Supports for two 2.5” SSD/hard drives and one 3.5” hard drive
  • Mini-DTX / Mini-ITX motherboard & SFX PSU compatible
  • Standard-length expansion cards support (10 inches)




Product Information


Model No. SST-SG08B-LITE(black)
--
--
--
Material Extruded aluminum front panel, steel body
Motherboard Mini-DTXMini-ITX
Multimedia --
Drive Bay External Slim slot-loading optical x 1
--
Internal 3.5" x 1 , 2.5” x 2
Cooling System Front --
Rear --
Side Oversized vents
Top 120mm/140mm/180mm fan slot
Bottom VGA exhaust divider
Internal --
Expansion Slot 2
Front I/O Port USB 3.0 x 2
Audio x 1
MIC x 1
Power Supply Support standard ATX PSU up to 160mm in length
Operating system support --
Expansion Card Support expansion cards up to 12.2” long, width 4.84”*
Limitation of CPU cooler 147mm
Limitation of PSU --
Net Weight --

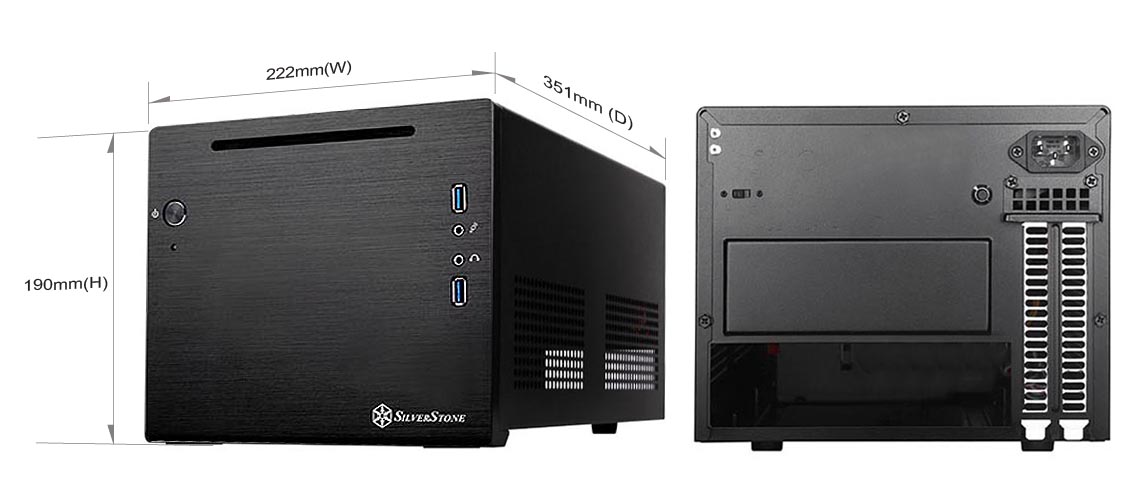

Dimension 222 mm (W) x 190 mm (H) x 351 mm (D), 14.8 liters
Extra --
Support VESA Mount --

Remark
* To support graphics card longer than 7.25”, a non-modular PSU with maximum 140mm length is required.

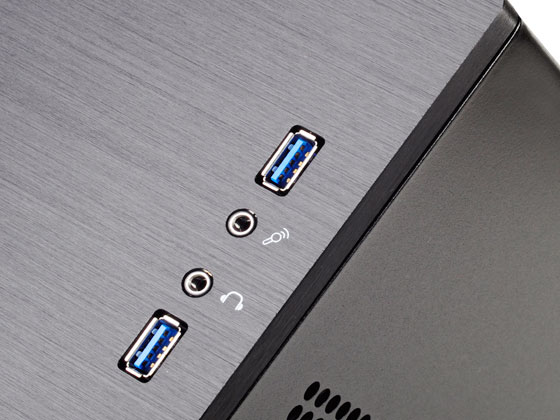

Front I/O ports

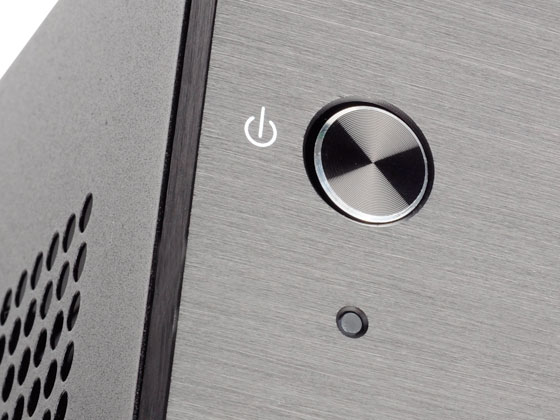

SilverStone stylish power button

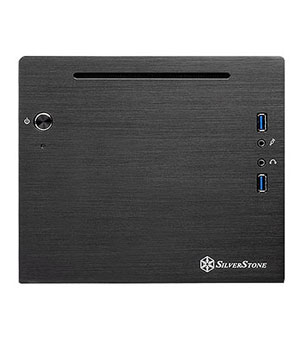

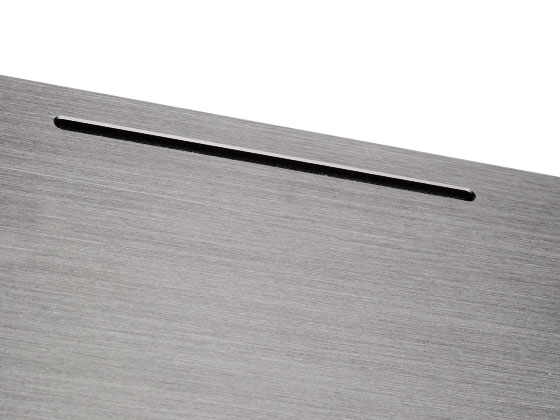

Slot-in optical drive

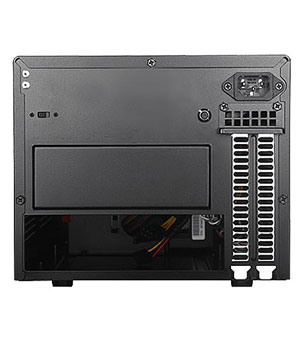

2 x PCI-E slot

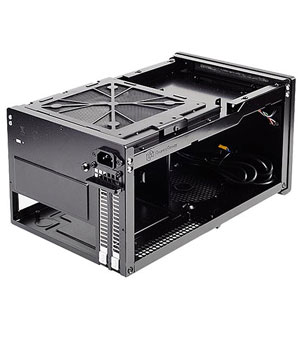

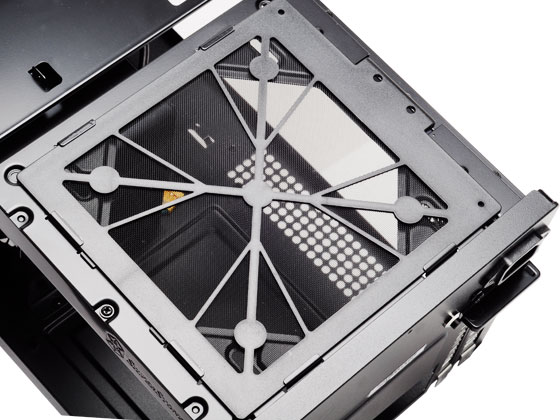

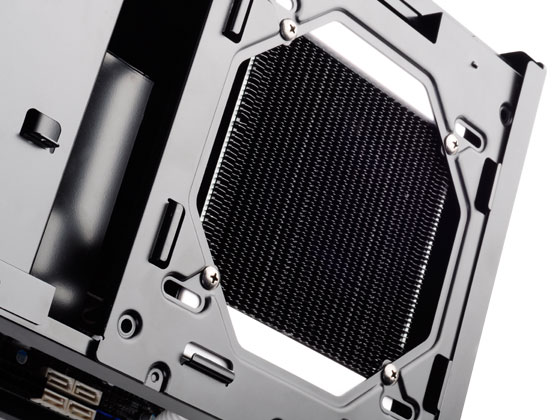

Fan bracket supports 180mm fan or 120mm/140mm fan + water cooling radiator

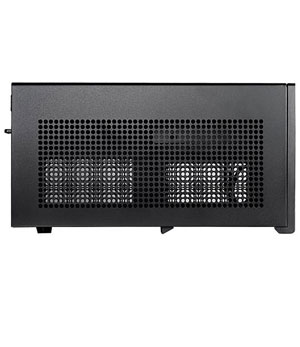

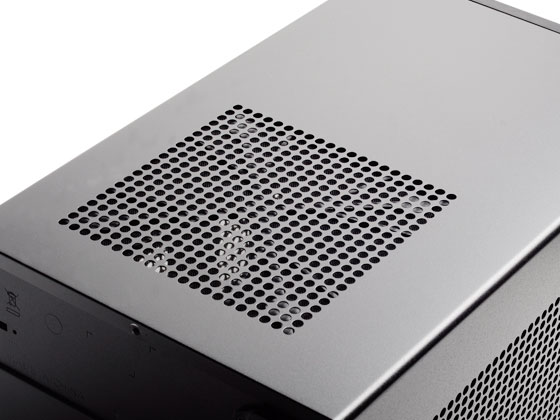

Oversized vents

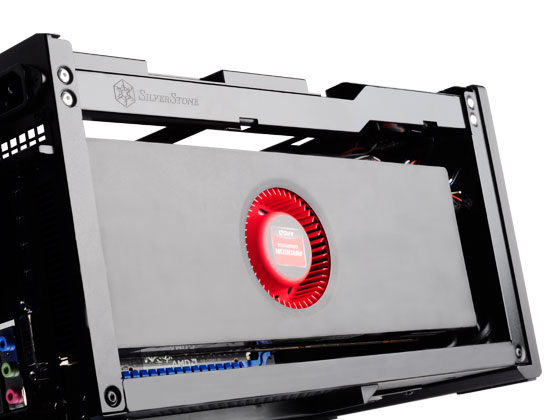

Support graphics cards up to 12.2 inches
Used with SilverStone TD03 AIO liquid cooler
