SilverStone SOB02
- Slim type Blu-ray DVD/CD Writer
- Cyberlink PowerDVD BD suite included
- Includes CP10, slim-SATA to SATA adapter
Product Information
| Model No. | SST-SOB02 | ||
| Power requirement | 5Vdc. | ||
| Power Supply | |||
| 1.Operating Voltage | DC 5 V +/- 0.25V | ||
| 2.Power Consumption | Peak | 1800 mA (Max.) | |
| Read (CD) | 1100 mA (typ.) | ||
| Read (DVD) | 950 mA (typ.) | ||
| Read (BD) | 950mA(typ.) | ||
| Write | 1350 mA (typ.) | ||
| Standby | 50 mA (typ.) | ||
| 3. Ripple | 100 mVp-p Max. | ||
| Drive | |||
| 1.Transfer Rate (1) Read DVD-ROM SL/DL CD-ROM BD-ROM SL/DL CD-R CD-RW DVD-R SL/DL DVD-RW DVD+R SL/DL DVD+RW DVD-RAM BD-RE SL/DL BD-RE TL BD-R SL/DL BD-R TL/QL CDDA CD-ROM/PhotoCD VideoCD Mixed Disc (CD-Extra) 8cm CD DVD-Video BD-Movie |
MAX 8X CAV (MAX 10800 kB/s) MAX 24X CAV (MAX 3600 kB/s) MAX 6X CAV (MAX 27 MB/s ) MAX 24X CAV (MAX 3600 kB/s) MAX 24X CAV (MAX 3600 kB/s) MAX 8X CAV (MAX 10800 kB/s) MAX 8X CAV (MAX 10800 kB/s) MAX 8X CAV (MAX 10800 kB/s) MAX 8X CAV (MAX 10800 kB/s) Max3X-5X Partial CAV ( 4.7GB) MAX 6X CAV Max 2X CLV MAX 6X CAV Max 4X ZCLV Max. 10x CAV / 20x CAV Max. 24x CAV Max. 10x CAV Max. 24x CAV Max. 20x CAV Max. 12x CAV / 20x CAV N/A Max. 4x CAV 2.0x CLV |
||
| (2) Write CD-R CD-RW HS-RW US-RW CD 8cm media DVD-R DVD-R DL DVD-RW DVD+R DVD+R DL DVD+RW DVD-RAM DVD 8cm media BD-R SL/DL BD-R TL/QL BD-RE SL/DL BD-RE TL/QL |
4X (CLV), 8X (CLV), 24X (ZCLV) 4X (CLV) 10X (CLV) 16x(ZCLV) N/A 2X(CLV),MAX. 4X (ZCLV), MAX.8X (CAV) 2X(CLV),MAX.4X/6X(ZCLV) 1X(CLV), 2X(CLV),MAX.4X/6X(ZCLV) 2.4X(CLV),MAX4X(ZCLV), MAX.8X(CVA) 2.4X(CLV),MAX.6X(ZCLV) 2.4X(CLV), 3.3X(CLV), MAX.4X /8X(ZCLV) 2X/3X (ZCLV), 5X (PCAV) N/A 2X (CLV), MAX.4X(ZCLV/PCAV),MAX.6X (CAV) 2X (CLV), MAX.4X(PCAV) 2X (CLV) 2X (CLV) |
||
| (3) SATA Interface | 150 Mbyte/s | ||
| 2.Buffer Memory | 2MB | ||
| 3.Error Rate (1) CD-ROM(with ECC) (without ECC) (2) DVD-ROM (3) BD-ROM |
2MB less than 10-12 bit less than 10-9 bit less than 10-12 bit less than 10-12 bit |
||
| 4.Access Time | DVD-ROM 190 ms typ.(Random) CD-ROM 180 ms typ.(Random) BD-ROM 300mstyp.(Random) |
||
| 5.Start up Time | less than 15s | ||
| 6.Stop Time | less than 6s | ||
| 7.Acoustic Noise | less than 50 dBA | ||
| 8.Bus Encryption | Support | ||
| 9.Regional Code | ''None'' | ||
| 10.Inquiry Data | "BD-MLT UJ265" | ||
| Applicable disc | C D: |
CD-ROM CD-R,CD-RW |
|
| DVD: | DVD-ROM,DVD-R,DVD-R DL DVD-RAM,DVD-RW DVD+R, DVD+R DL,DVD+RW |
||
| BD: | BD-ROM,BD-R,BD-RE | ||
| Applicable disc format | C D: |
CD-DA,CD-ROM,CD-ROM XA PhotoCD(muiltiSession) Video CD,CD-Extra(CD+),CD-text Hybrid SACD |
|
| DVD: |
DVD-VIDEO, DVD-ROM, DVD-R(4.7GB), DVD-RW(Ver.1.1/1.2) , DVD-RAM DVD+R, DVD+R DL, DVD+RW DVD-R DL(Format1/4) |
||
| BD: |
BD-ROM (1.3), BD-R(2.0),BD-RE (3.0) |
||
| Slope | Horizontal （15degree ; Any direction） | ||
| Dimensions, Weight | 128 x 129 x 12.7 mm ( W x D x H ) (except protrusion) 165 g +/- 10g |
||
| Eject | Soft Eject | ||

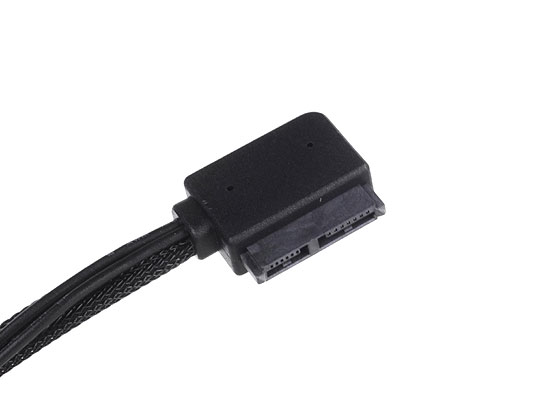

Lateral 90°angled slim-SATA connector

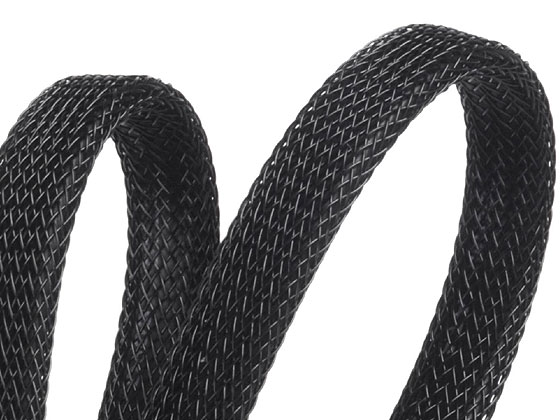

Sleeved cable

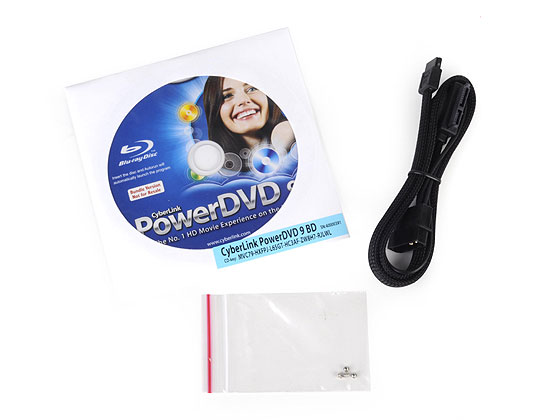

Accessories
