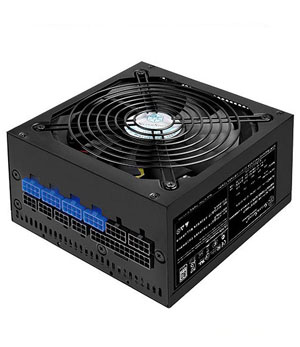

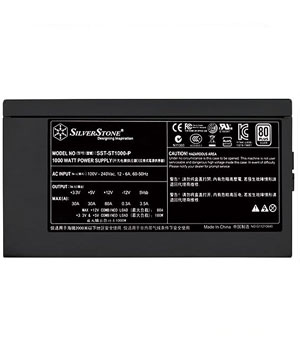

SilverStone ST1000-P


  • 1000W 24hour continuous power output with 40℃operating temperature
  • 1100W peak power

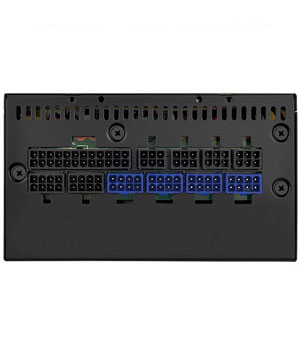

  • 100% modular cables

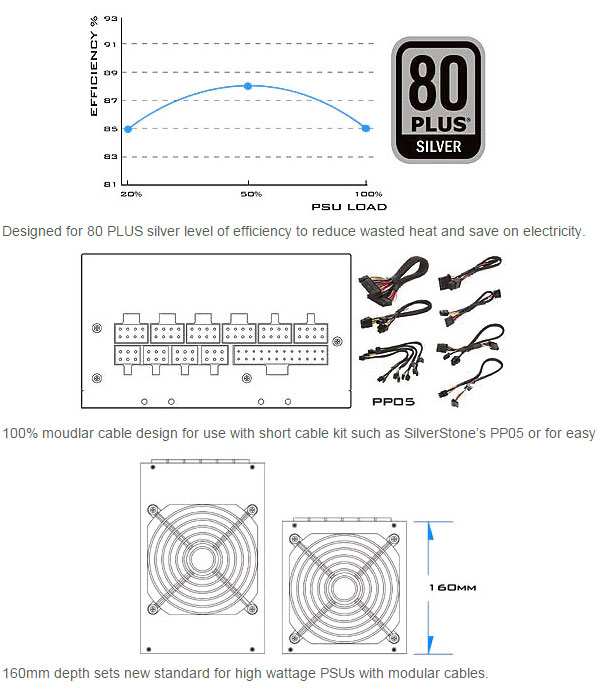

  • Efficiency 85%~88% at 20%~100% loading

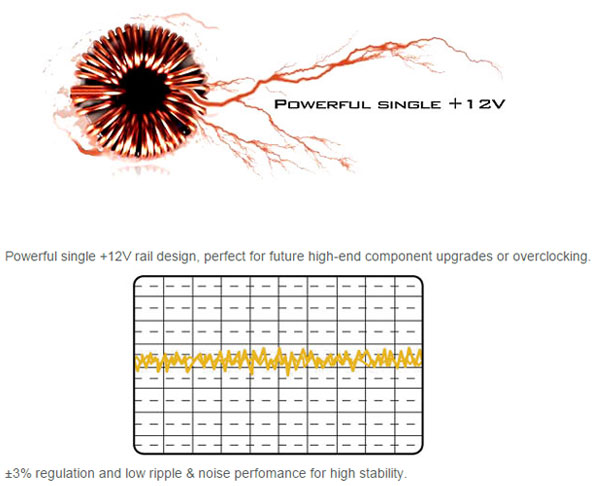

  • Class-leading single +12V rail with 80A (peak 85A)
  • Strict ±3% voltage regulation and low ripple & noise
  • Japanese main capacitors

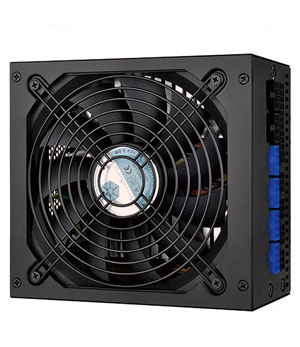

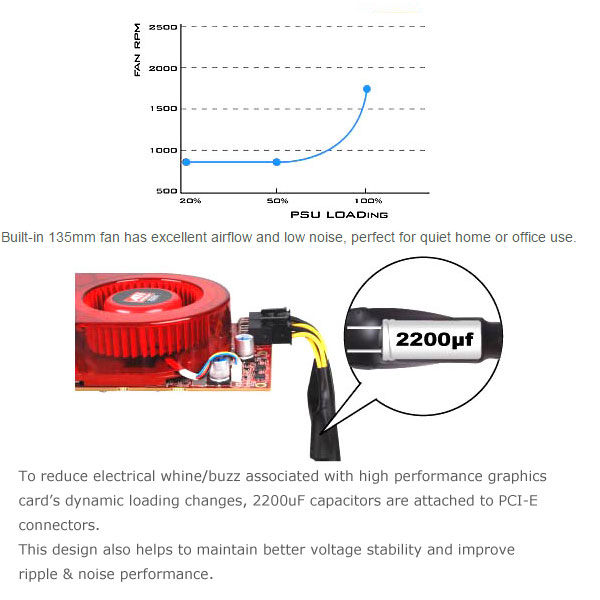

  • Silent running 135mm fan with 19dBA minimum
  • Dual EPS 8pin connectors support
  • Four PCI-E 8pin and six PCI-E 6pin connectors support
  • Supports ATX 12V 2.3 & EPS 12V
  • Active PFC

Product Information

Model No.
SST-ST1000-P
Max. DC Output
1000W(Peak 1100W)
Power density
431W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
30A 30A 80A 3.5A 0.3A
Peak (Amps)
/ / 85A / /
Min.(Amps)
0A 0.5A 0.1A 0.1A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
combined +3.3, +5V
180W
combined +12V
960W/80A(Peak 85A)
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC(PF>0.95 at full load)
Efficiency
85%~88%(20% to 100% loading)
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
No load protection
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)

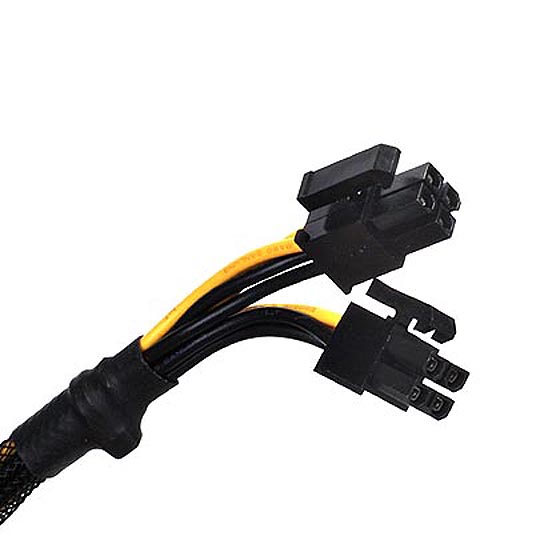

1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)

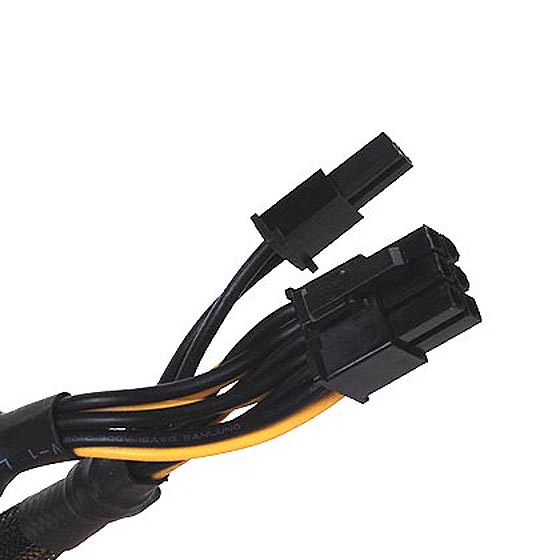

4 x 8/6-Pin PCIE connector(550mm)
2 x 6-Pin PCIE connector(550mm / 150mm)

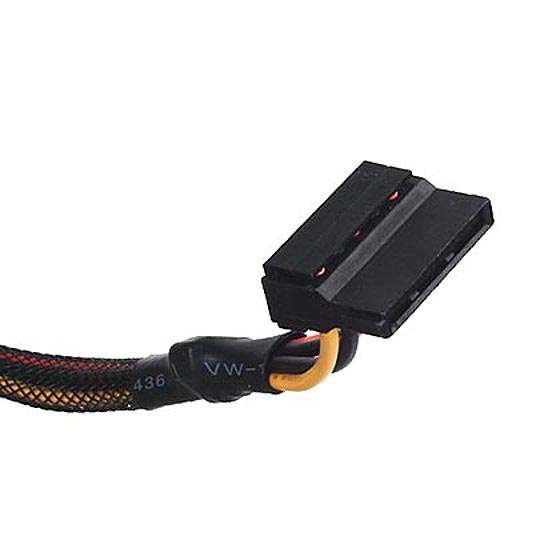

6 x SATA connector(500mm / 250mm / 250mm)
6 x 4-Pin Peripheral connector (500mm / 250mm / 250mm)
2 x 4-Pin Floppy connector(500mm / 250mm / 250mm / 150mm)
Cooling System

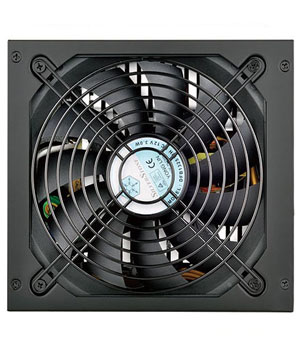

Silent 135mm fan
Noise Level
19dBA-36dBA
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
Weight
3 kg
Form factor
Certification
80 PLUS Silver

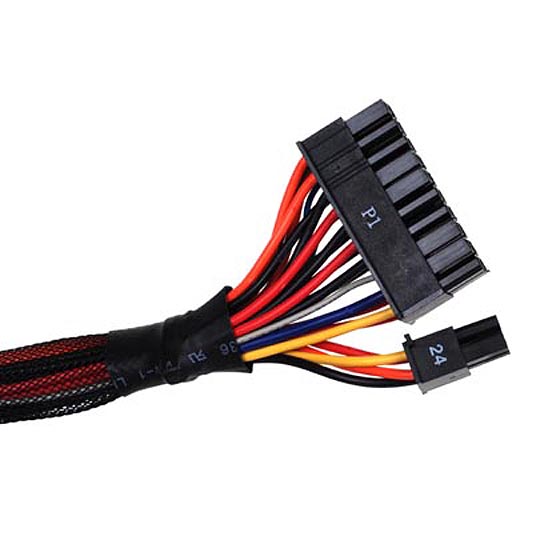

24/20-pin motherboard connector x 1

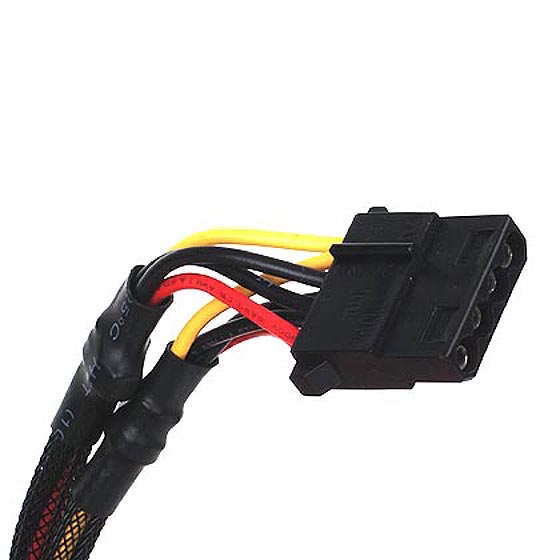

4-pin peripheral connector x 6
SATA connector x 6

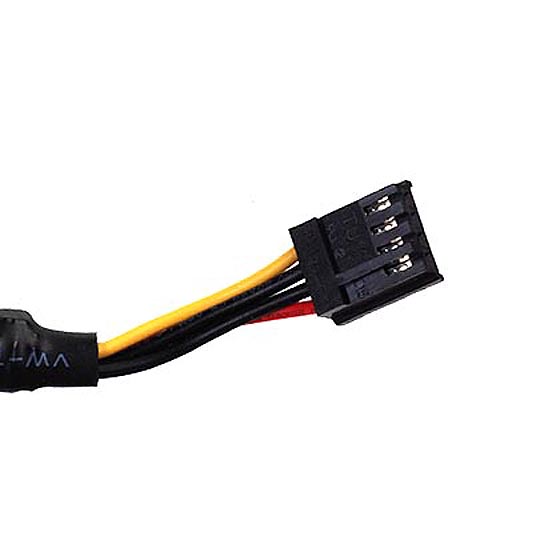

4-pin floppy connector x 2
6-pin PCI-E connector x 2
4+4 pin EPS12V/ATX12V connector x 2

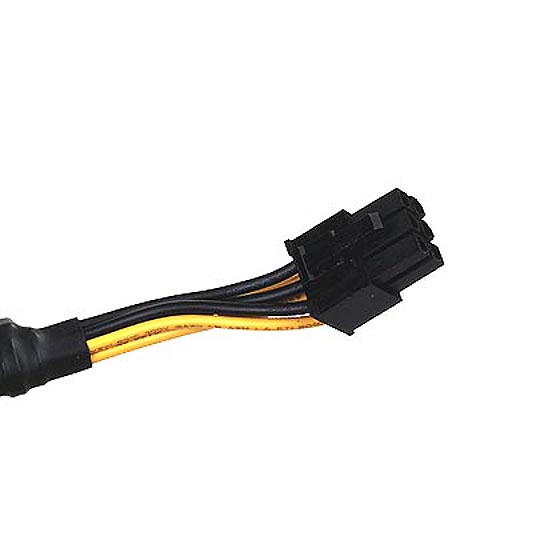

8/6-pin PCI-E connector x 4
