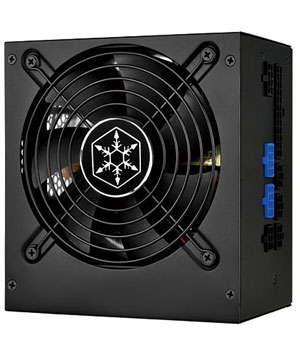

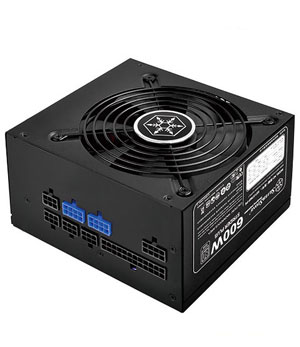

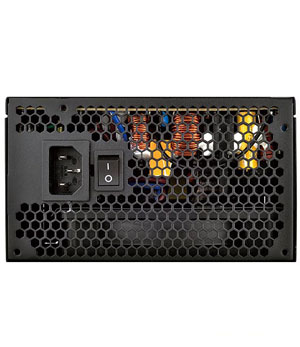

SilverStone ST60F-PS


  • Compact design with a depth of 140mm for easy integration

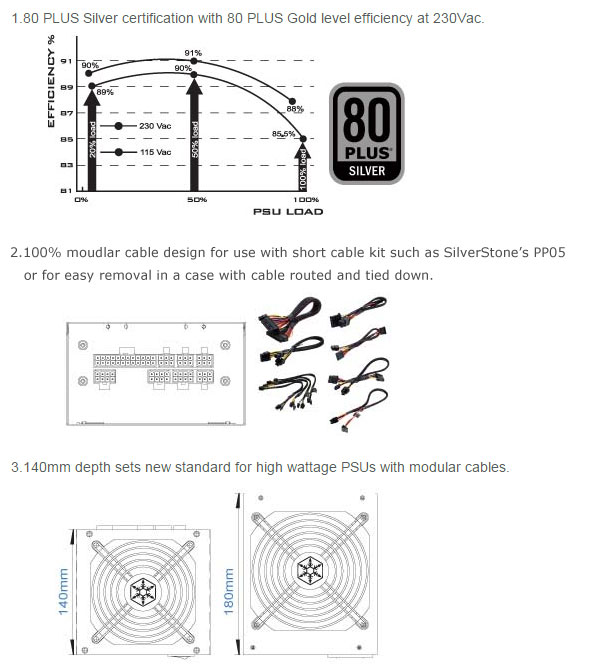

  • 80 PLUS Silver certification with 80 PLUS Gold level efficiency at 230Vac
  • 100% modular cables
  • 600W 24/7 continuous power output with 40℃ operating temperature

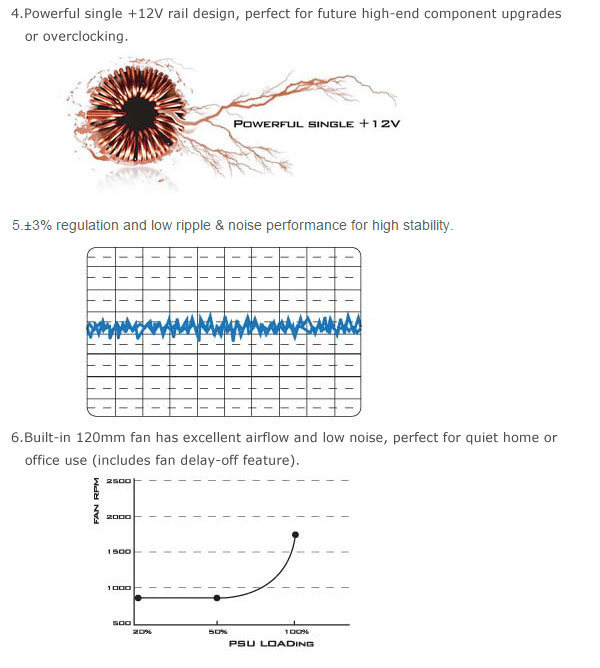

  • Class-leading single +12V rail with 49A
  • Strict ±3% voltage regulation and low ripple & noise

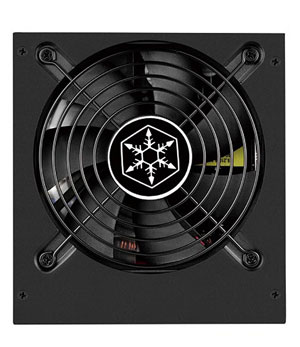

  • Silent running 120mm fan with 18dBA minimum

Product Information

Model No.
SST-ST60F-PS
Max. DC Output
600W (Peak 700W)
Power density
332W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
20A 20A 49A 3.0A 0.5A
Peak (Amps)
/ / / / /
Min.(Amps)
0.1A 0.2A 0.6A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
combined +3.3, +5V
130W
combined +12V
49A/588W
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC(PF>0.95 at 230V/50Hz, max load)
Efficiency
85%~88% @ 20%~100% loading
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection

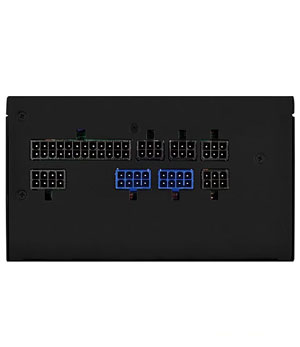

Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
2 x 8 / 6-Pin PCIE connector(550mm)
2 x 6-Pin PCIE connector(550mm / 150mm)
8 x SATA connector(500mm / 150mm / 150mm / 150mm)
6 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
2 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)
Cooling System
Silent 120mm fan
Noise Level
18dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
2.25 kg
Certification
80 PLUS Silver



24 / 20-Pin motherboard connector x 1
4-Pin Peripheral connector x 6
SATA connector x 8
4-Pin Floppy connector x 2
6-Pin PCIE connector x 2
8 / 4-Pin EPS / ATX 12V connector x 3
8 / 6-Pin PCIE connector x 2
